Scotch Yoke Mechanism
Features

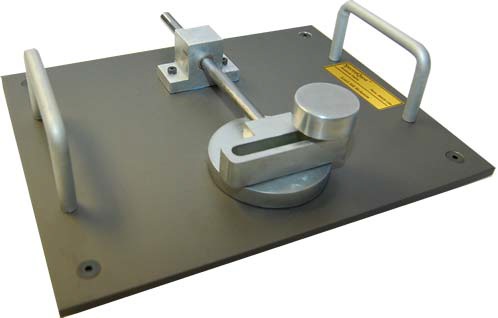

Scotch yoke mechanism is used for converting rotational motion of the crank into linear motion of slider or vice versa. For constant rotational speed of the crank, the slider gives simple harmonic motion. As the crank wheel rotates the crank pin slides along the slot of sliding yoke and causes the slider to go back and forth.
