Rotor Vibration Studies Package # 3

This turnkey training package focuses
View Presentation
Print Brochure
Get a Quote
Why WTS
Why WTS

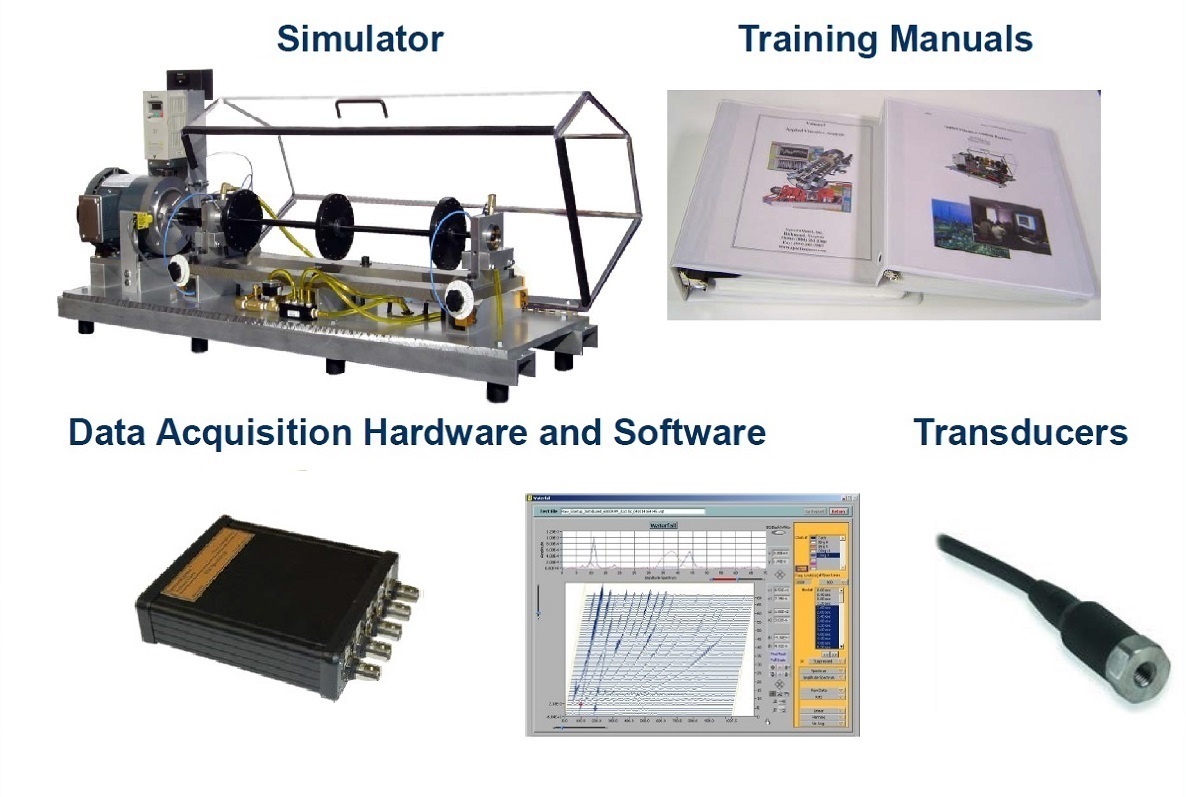

Simulator and Option Kits

  • MFS-RDS Simulator
  • Training curriculum
  • 1/2″ shaft oil whirl/whip
  • 3/4″ shaft oil whirl/whip
  • 3/4″ shaft rolling bearings
  • Eccentric and cocked rotors
  • Four coupling types
  • Centrally bent rotor shaft for balance studies
  • Coupling-end bent rotor shaft for alignment studies
  • Rolling bearing resonance/critical
  • Sleeve bearing resonance
  • 3/4″ shaft bearing fault
  • 3/4″ shaft bearing loader
  • 1″ shaft study kit
  • 1″ shaft bearing fault
  • 1″ shaft bearing loader
  • Cocked bearing housing
  • 3/4″ shaft sleeve bearing

Data Acquisition System

  • VibraQuest Pro Software
  • 8 Channel 5kHz Portable USB DAQ
  • Analog input, 16 bit resolution, 8 channel simultaneous sampling at 5kHz or 2 channel simultaneous sampling at 20kHz, IEPE sensor input, Bipolar range -10 to 10, -5 to 5, -2 to 2, -1 to 1.

Transducer

  • Four industrial ICP accelerometers, 0.3-10KHz, 100mV/G
  • Two Eddy current proximity probe with demodulator and power supply
