Wind Turbine study complete system Package # 7

The Turnkey Training Packages For Machinery Diagnostics
View Presentation
Print Brochure

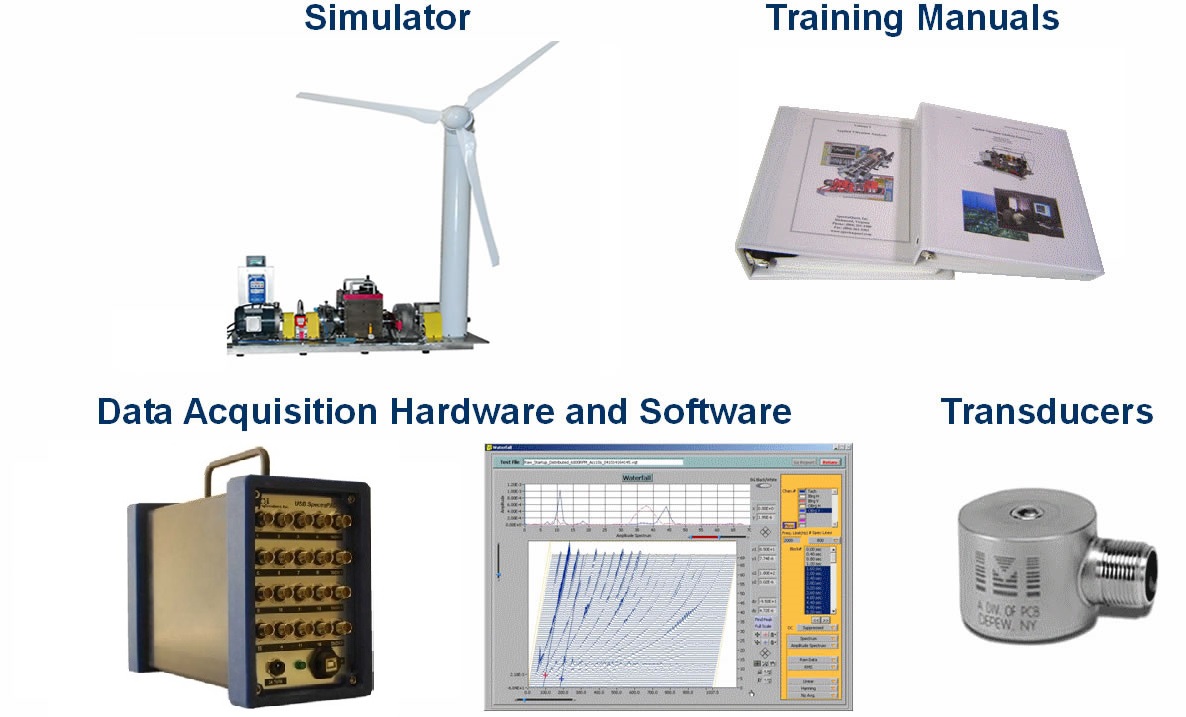

What’s Included
What’s Included

Simulator and Option Kits

  • Wind Turbine Drivetrain Diagnostics Simulator
  • Parallel gearbox bearing fault kit
  • Planetary gearbox bearing fault kit
  • Defective spur gears
  • Eccentric Spur Gear
  • Helical gears set
  • Defective helical gears
  • Defective planatary gears
  • PC motor control kit
  • PC Load control kit
  • Radial bearing loader
  • Radial bearing loader force transducer (Requires W-RBL)
  • Torque transducer with built encoder on input shaft
  • Shaft encoder

DataAcquisition System

  • VibraQuest Pro Software
  • Desktop PC with securely mounted DAQ board, 24 bit resolution, 8 channel simultaneous sampling at 102.4 kHz, IEPE sensor power, Anti-Aliasing filter, eight 8 foot SMB to BNC cables.

Transducer

  • Four industrial ICP accelerometers, 0.3-10KHz, 100mV/G
