Rotor, Motor & Machinery Vibration Studies Package # 6

Protect Your Asset Investment and Optimize Reliability
View Presentation
Print Brochure
Get a Quote

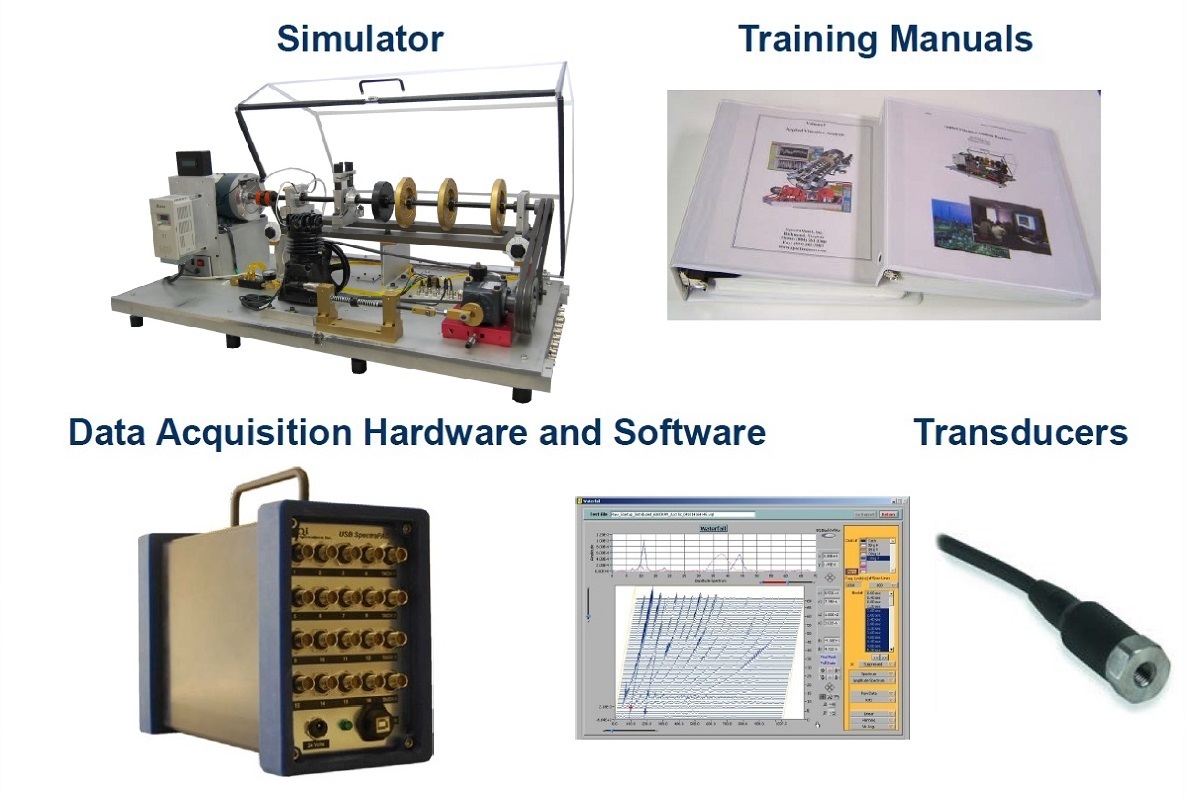

What’s Included
What’s Included

Simulator and Option Kits

  • MFS-Magnum Simulator
  • Training curriculum
  • 1/2″ and 3/4″ shaft oil whirl/whip
  • Eccentric and cocked rotors
  • Four coupling types
  • Center and end bent shafts
  • Rolling bearing resonance/critical
  • Sleeve bearing resonance
  • 3/4″ and 1″ shaft bearing fault
  • 3/4″ and 1″ shaft bearing loader
  • 1″ shaft bearing
  • Cocked and damped bearing housing
  • 3/4″ shaft sleeve bearing
  • Multi-belt drive and gearbox
  • Belt-drive mounting block
  • Eccentric sheave
  • Reciprocating mechanism
  • Mechanical rub
  • Crack shaft
  • Fan vibration
  • Centrifugal pump
  • Reciprocating compressor
  • Faulted gearbox, pump, compressor
  • Direct driven belt drive, gearbox, reciprocating, pump, compressor
  • Seven AC motor with faults

DataAcquisition System

  • VibraQuest Pro Software
  • Desktop PC with securely mounted DAQ board, 24 bit resolution, 8 channel simultaneous sampling at 102.4 kHz, IEPE sensor power, Anti-Aliasing filter, eight 8 foot SMB to BNC cables.

Transducer

  • Eight industrial ICP accelerometers, 0.3-10KHz, 100mV/G
  • One industrial ICP tri-axial accelerometer, 0.4 – 5 kHz , 100 mV/g
  • Four Eddy current proximity probe with demodulator and power supply
  • AC motor current probe
