Name: ICP Vibration Transmitter (SQI682A03)
SKU: 1786
Availability: InStock

Description

-DIN rail mount vibration transmitter (for use w/ICP® sensor), 4 to 20 mA output, 3 to 10k Hz
-Channels: 1
-Power Required: DC power

Specifications

Model 682A03

Product Type: 4-20 mA Transmitter, DIN Rail, Vibration Transmitter

DIN rail mount vibration transmitter (for use w/ICP® sensor), 4 to 20 mA output, 3 to 10k Hz

View Spec Sheet (PDF)

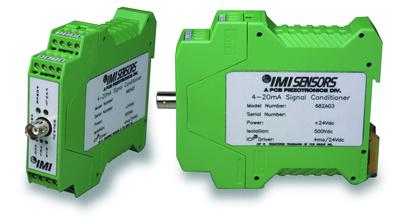

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Channels

1

Input Signal(Vibration)

± 100 mV/g

± 10.2 mV/(m/s²)

[2]

Input Signal(Temperature)

0 to 1.2 VDC

[3]

Output Signal(DC Vibration)

4 to 20 mA

[4]

Output Signal(DC Vibration)

0 to 5 VDC

[1][5]

Output Signal(DC Vibration)

0 to 10 VDC

[1][5]

Output Signal(Temperature)

4 to 20 mA

[3]

Output Signal(± 0.01 %)(AC Vibration)

100 mV/g

10.2 mV/(m/s²)

[6]

Frequency Range(-3 dB)(Acceleration)

180 to 600,000 cpm

3 to 10k Hz

[7][8][9]

Frequency Range(-3 dB)(Velocity)

210 to 600,000 cpm

3.5 to 10k Hz

[7][8][9]

Frequency Range(-3 dB)(Displacement)

210 to 60,000 kHz

3.5 to 1000 Hz

[7][10][8]

Output Range(DC Acceleration)

0 to 5.00 g pk or rms

0 to 49.03 m/s² pk or rms

[1][11][2]

Output Range(DC Acceleration)

0 to 10.00 g pk or rms

0 to 98.06 m/s² pk or rms

[1][11][2]

Output Range(DC Acceleration)

0 to 20.00 g pk or rms

0 to 196.12 m/s² pk or rms

[1][11][2]

Output Range(DC Velocity)

0 to 0.5 in/sec pk or rms

0 to 12.7 mm/s pk or rms

[1][11][2]

Output Range(DC Velocity)

0 to 1.00 in/sec pk or rms

0 to 25.4 mm/s pk or rms

[1][11][2]

Output Range(DC Velocity)

0 to 2.00 in/sec pk or rms

0 to 50.8 mm/s pk or rms

[1][11][2]

Output Range(DC Displacement)

0 to 25.0 mil pk – pk

0 to 0.635 mm pk – pk

[1][11][2]

Output Range(DC Displacement)

0 to 50.0 mil pk – pk

0 to 1.27 mm pk – pk

[1][11][2]

Output Range(DC Displacement)

0 to 100.0 mil pk – pk

0 to 2.54 mm pk – pk

[1][11][2]

ENVIRONMENTAL

Temperature Range(Operating)

32 to 158 °F

0 to 70 °C

Temperature Range(Storage)

-40 to 257 °F

-40 to 125 °C

Humidity Range(Non-Condensing)

0 to 95 %

ELECTRICAL

Power Required

DC power

DC Power

18 to 36 VDC

DC Power(maximum)

125 mA

Settling Time

<2 min

Load Resistance(4-20 mA, maximum)

500 ohm

Load Resistance(0-5/10 V, minimum)

1000 ohm

Electrical Isolation(input/output)

500 VDC

Excitation Voltage(delivered to sensor)

23 to 25 VDC

Constant Current Excitation(delivered to sensor)

3 to 5 mA

Zero Measurand Output(± 2% of Span)(DC Vibration Current Output)

4 mA

Output Span(± 5.0 %)(DC Vibration Current Output)

16 mA

Zero Measurand Output(± 2% of Span)(DC Vibration Voltage Output)

0 VDC

Output Span(± 5.0 %)(DC Vibration Voltage Output)

5 or 10 VDC

[1]

Zero Measurand Output(± 2% of Span)(Temperature Current Output)

4 mA

Output Span(± 5.0 %)(Temperature Output)

16 mA

PHYSICAL

Electrical Connector(input/output)

Removable Screw Terminals

Electrical Connector(raw vibration output)

BNC Jack

Housing Material

Polyamide

Size (Height x Width x Depth)

3.9 in x 0.9 in x 4.5 in

99 mm x 22.5 mm x 114.5 mm

Weight(Maximum)

6.4 oz

127

Screw Terminal Wire Size

24-14 AWG

Din Rail Mount

1.38 in

35 mm

Status Indicator(Power “on”)

Green LED

Status Indicator(Input Fault)

Red LED

Status Indicator(Measurement Mode – Acceleration)

Green LED

Status Indicator(Measurement Mode – Velocity)

Green LED

Status Indicator(Measurement Mode – Displacement)

Green LED

All specifications are at room temperature unless otherwise specified.

NOTES:
[1]	Internal Dip switch selectable
[2]	Output measurement range is based upon input from 100 mV/g ICP® accelerometer and will be scaled inversely proportional to any percentage deviation of this input.
[3]	Requires use of accelerometer with “TO” temperature output option.
[4]	Output current voltage will fluctuate at frequencies below 5 Hz.
[5]	Factory set, 0-5 VDC.
[6]	Achieved with 100 mV/g ICP® accelerometer input.
[7]	Attenuation is -40 dB/decade.
[8]	The low frequency tolerance is accurate within ± 0.5 Hz of the specified frequency.
[9]	The high frequency tolerance is accurate within ± 0.5 kHz of the specified frequency.
[10]	Maximum 1,000 Hz for displacement.
[11]	Factory set, 1 in/sec peak.
[12]	See PCB Declaration of Conformance PS051 for details.

[12]

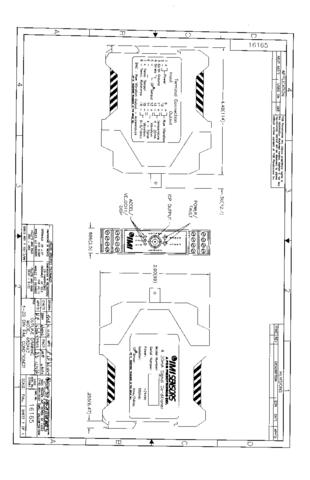

Download Drawing 16165-NR.pdf
