Name: Hammer (SQI086C42)
SKU: 1764
Availability: InStock

Description

-Large-sledge, Modally Tuned® ICP® impact hammer , 1 mV/lbf (0.23 mV/N), for large structure testing
-Sensitivity: (±15%) 1 mV/lbf (0.23 mV/N)
-Measurement Range: ±5000 lbf pk (±22000 N pk)
-Hammer Mass: 12.1 lb (5.5 kg)

Specifications

Model 086C42

Product Type: Impact Hammer, Impulse Hammer

Large-sledge, Modally Tuned® ICP® impact hammer , 1 mV/lbf (0.23 mV/N), for large structure testing

View Spec Sheet (PDF)

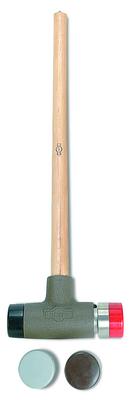

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 15 %)

1 mV/lbf

0.23 mV/N

Measurement Range

± 5000 lbf pk

± 22,000 N pk

Resonant Frequency

≥ 5 kHz

Non-Linearity

≤ 1 %

ELECTRICAL

Excitation Voltage

18 to 30 VDC

Constant Current Excitation

2 to 20 mA

Output Impedance

<100 ohm

[1]

Output Bias Voltage

8 to 12 VDC

Discharge Time Constant

≥ 2000 sec

[1]

PHYSICAL

Sensing Element

Quartz

Sealing

Hermetic

Hammer Mass

12.1 lb

5.5 kg

Head Diameter

3.0 in

7.6 cm

Tip Diameter

3.0 in

7.6 cm

Hammer Length

35 in

89 cm

Electrical Connection Position

Bottom of Handle

Electrical Connector

BNC Jack

SUPPLIED ACCESSORIES:

Model 084A31 Tip – soft plastic, brown (1)

Model 084A32 Tip – hard plastic, red (1)

Model HCS-2 Calibration of Series 086 instrumented impact hammers (1)

All specifications are at room temperature unless otherwise specified.

NOTES:

[1]

Typical.

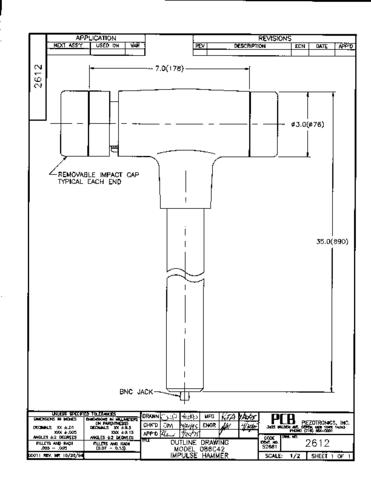

Download Drawing 2612-NR.pdf
