Name: Hammer (SQI086C41)
SKU: 1759
Availability: InStock

Description

-Short-sledge Modally Tuned® ICP® impact hammer , 1 mV/lbf (0.23 mV/N), for industrial machinery testing
-Sensitivity: (±15%) 1 mV/lbf (0.23 mV/N)
-Measurement Range: ±5000 lbf pk (±22000 N pk)
-Hammer Mass: 2.4 lb (1.1 kg)

Specifications

Model 086C41

Product Type: Impact Hammer, Impulse Hammer

Short-sledge Modally Tuned® ICP® impact hammer , 1 mV/lbf (0.23 mV/N), for industrial machinery testing

View Spec Sheet (PDF)

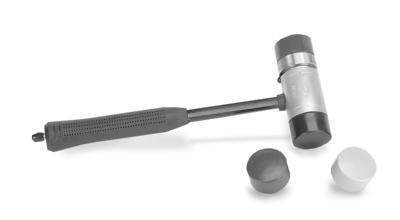

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 15 %)

1 mV/lbf

0.23 mV/N

Measurement Range

± 5000 lbf pk

± 22,000 N pk

Frequency Range(-10 dB)(Hard Tip)

1 kHz

[1][2]

Frequency Range(-10 dB)(Medium Tip)

700 Hz

[1][2]

Frequency Range(-10 dB)(Soft Tip)

450 Hz

[1][2]

Frequency Range(-10 dB)(Super Soft Tip)

400 Hz

[1][2]

Resonant Frequency

≥ 12 kHz

Non-Linearity

≤ 1 %

ELECTRICAL

Excitation Voltage

18 to 30 VDC

Constant Current Excitation

2 to 20 mA

Output Impedance

<100 ohm

[1]

Output Bias Voltage

8 to 12 VDC

Discharge Time Constant

≥ 1400 sec

[1]

PHYSICAL

Sensing Element

Quartz

Sealing

Hermetic

Hammer Mass

2.4 lb

1.1 kg

Head Diameter

2.0 in

5.1 cm

Tip Diameter

2.0 in

5.1 cm

Hammer Length

14.5 in

37 cm

Electrical Connection Position

Bottom of Handle

Electrical Connector

BNC Jack

SUPPLIED ACCESSORIES:

Model 084A60 Tip – super soft plastic, gray (1)

Model 084A61 Tip – soft plastic, brown (1)

Model 084A62 Tip – medium plastic, red (1)

Model 084A63 Tip – hard plastic, black (1)

Model HCS-2 Calibration of Series 086 instrumented impact hammers (1)

All specifications are at room temperature unless otherwise specified.

NOTES:

[1]

Typical.

[2]

Varies depending on test structure. These values are from hitting a stiff steel mass. Hammer did not have extender mass attached.

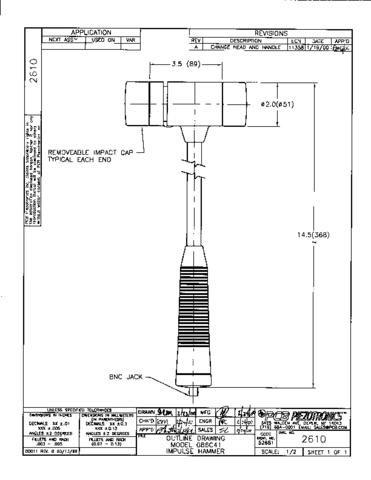

Download Drawing 2610-A.pdf
