Name: Hammer (SQI086C40)
SKU: 297
Availability: InStock

Description

General purpose Modally Tuned® ICP® impact hammer, 10 mV/lbf (2.3 mV/N), for general purpose use
Sensitivity: (±15%) 10 mV/lbf (2.25 mV/N)
Measurement Range: ±500 lbf pk (±2200 N pk)
Hammer Mass: 0.30 lb (0.14 kg)

Specifications

Model 086C40

Product Type: Impact Hammer, Impulse Hammer

General purpose Modally Tuned® ICP® impact hammer , 10 mV/lbf (2.3 mV/N), for general purpose use

View Spec Sheet (PDF)

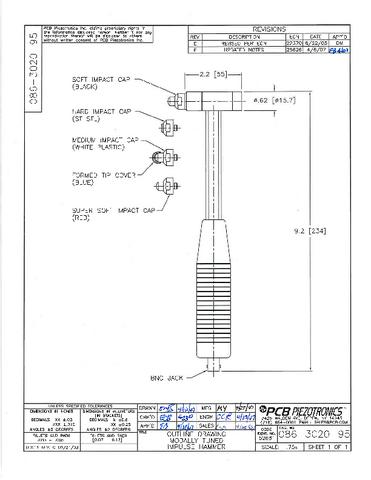

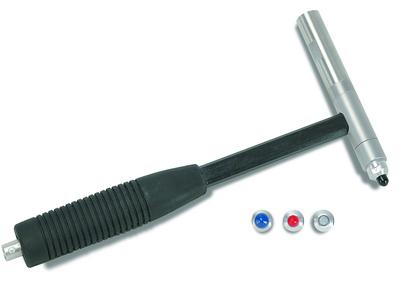

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 15 %)

10 mV/lbf

2.25 mV/N

Measurement Range

± 500 lbf pk

± 2200 N pk

Resonant Frequency

≥ 31 kHz

Non-Linearity

≤ 1 %

ELECTRICAL

Excitation Voltage

18 to 30 VDC

Constant Current
Excitation

2 to 20 mA

Output Impedance

<100 ohm

[1]

Output Bias Voltage

8 to 12 VDC

Discharge Time Constant

≥ 2000 sec

[1]

PHYSICAL

Sensing Element

Quartz

Sealing

Epoxy

Hammer Mass

0.30 lb

0.14 kg

Head Diameter

0.60 in

1.50 cm

Tip Diameter

0.25 in

0.63 cm

Hammer Length

8.0 in

20.3 cm

Electrical Connection
Position

Bottom of Handle

Bottom of
Handle

Extender Mass Weight

2.6 oz

75 gm

Electrical Connector

BNC Jack

SUPPLIED ACCESSORIES:

Model 081B05 Mounting Stud (10-32
to 10-32) (2)

Model 084A08 Extender – Steel,
0.6″ Diameter (1)

Model 084B03 Hard Tip- Hard (S.S)
(1)

Model 084B04 Hammer Tip- Medium
(White Plastic) (1)

Model 084C05 Hammer Tip- Soft
(Black) (2)

Model 084C11 Hammer Tip-
Supersoft (Red) (2)

Model 085A10 Vinyl Cover For
Medium Tip (Blue) (2)

Model HCS-2 Calibration of Series
086 instrumented impact hammers (1)

OPTIONAL
VERSIONS

T– TEDS
Capable of Digital Memory and Communication Compliant
with IEEE P1451.4

All specifications are at room temperature unless otherwise specified.

NOTES:

[1]

Typical.

[2]

See PCB Declaration of Conformance PS068 for details.

[2

Download Drawing 086-3020-95-F.pdf
