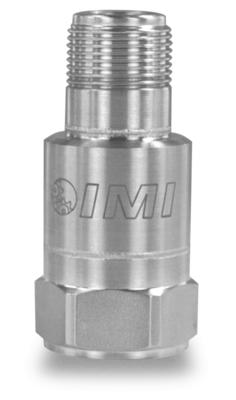

Accelerometer (SQIVO622A01)
Accelerometer (SQIVO622A01)
Description
- 100 mV/in/sec., top exit, 2-pin conn.
- Sensitivity: (±10%) 100 mV/in/sec (3937 mV/m/sec)
- Frequency Range: (±3dB) 180 to 540000 cpm (3 to 9000 Hz)
- Measurement Range: ±50 in/sec (±1.27 m/sec)
- Electrical Connector: MIL-C-5015
Specifications
 |
 |
| Model VO622A01 |
| Product Type: Accelerometer, Vibration Sensor |
| Model 622A01 w/ velocity output (VO) option, 100 mV/in/sec., top exit, 2-pin conn. |
| View Spec Sheet (PDF) |
| View photo and drawing . |
| PERFORMANCE | ENGLISH | SI | |||
| Sensitivity(± 10 %) | 100 mV/in/sec |
|
|||
| Measurement Range | ± 50 in/sec |
|
|||
| Frequency Range(± 10 %) | 240 to 270,000 cpm |
|
|||
| Frequency Range(± 3 dB) | 180 to 540,000 cpm |
|
|||
| Resonant Frequency | 1200 kcpm |
|
|||
| Broadband Resolution(1 to 10,000 Hz) |
450 µin/sec |
|
|||
| Non-Linearity | ± 1 % |
|
|||
| Transverse Sensitivity | ≤ 5 % |
|
|||
| ENVIRONMENTAL | |||||
| Overload Limit(Shock) | 5000 g pk |
|
|||
| Temperature Range | -65 to +250 °F |
|
|||
| Temperature Response | See Graph |
|
|||
| ELECTRICAL | |||||
| Settling Time(within 1% of bias) |
≤ 30 sec |
|
|||
| Excitation Voltage | 18 to 28 VDC |
|
|||
| Constant Current Excitation |
2 to 10 mA |
|
|||
| Output Impedance | <100 ohm |
|
|||
| Output Bias Voltage | 8 to 12 VDC |
|
|||
| Spectral Noise(10 Hz) | 40 µin/sec/√Hz |
|
|||
| Spectral Noise(100 Hz) | 7.0 µin/sec/√Hz |
|
|||
| Spectral Noise(1 kHz) | 0.4 µin/sec/√Hz |
|
|||
| Electrical Protection | RFI/ESD |
|
|||
| Electrical Isolation | >108 ohm |
|
|||
| PHYSICAL | |||||
| Size (Hex x Height) | 7/8 in x 2.06 in |
|
|||
| Weight | 3.3 oz |
|
|||
| Mounting Thread | 1/4-28 Female |
|
|||
| Mounting Torque | 2 to 5 ft-lb |
|
|||
| Sensing Element | Ceramic |
|
|||
| Sensing Geometry | Shear |
|
|||
| Housing Material | Stainless Steel |
|
|||
| Sealing | Welded Hermetic |
|
|||
| Electrical Connector | MIL-C-5015 |
|
|||
| Electrical Connection Position |
Top |
|
|||
| SUPPLIED ACCESSORIES: |
|||||
| Model 081A40 Mounting Stud (1) |
|||||
| Model ICS-1 NIST-traceable single-axis amplitude response calibration from 600 cpm (10 Hz) to upper 5% frequency (1) |
|||||
| OPTIONAL VERSIONS |
|||||
|
|||||
| Hazardous Area Approval |
Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I |
|
|||
| Hazardous Area Approval |
Exia IIC T4, AExia IIC, T4 |
|
|||
| Hazardous Area Approval |
Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4 |
|
|||
|
|||||
| Hazardous Area Approval |
EEx ia IIC T4, -54°C≤Ta≤121°C, II 1 G |
|
|||
|
|||||
| Supplied Accessory : Model M081A61 Mounting Stud 1/4-28 to M6 X 1 (1) |
|||||
| All specifications are at room temperature unless otherwise specified. | ||||||||||||||||||
|
||||||||||||||||||

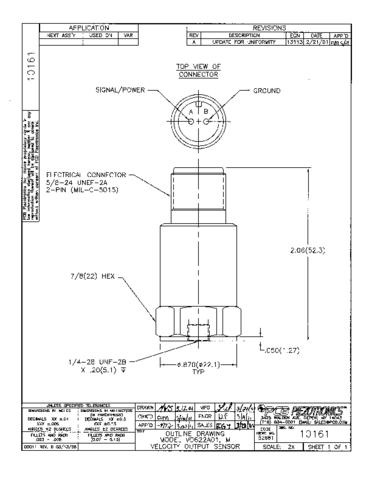

Download Drawing 10161-A.pdf
