Name: Accelerometer (SQIHT622A01)
SKU: 286
Availability: InStock

Description

Sensitivity: (±5%) 100 mV/g (10.2 mV/(m/s²)
Frequency Range: (±5%) 35 to 240000 cpm (0.58 to 4000 Hz)
Measurement Range: ±50 g (±490 m/s²)
Electrical Connector: MIL-C-5015
Electrical Connection Pos: Top

Specifications

Model HT622A01

Product Type: Accelerometer, Vibration Sensor

Model 622A01 w/ high temp. option (up to +325°F/163°C)

View Spec Sheet (PDF)

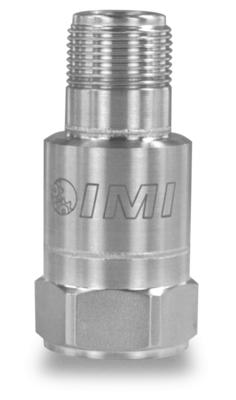

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 5 %)

100 mV/g

10.2 mV/(m/s²)

[4]

Measurement Range

± 50 g

± 490 m/s²

Frequency Range(± 5 %)

35 to 240,000 cpm

0.58 to 4000
Hz

[5][6]

Frequency Range(± 10 %)

25 to 300,000 cpm

0.42 to 5000
Hz

Frequency Range(± 3 dB)

12 to 480,000 cpm

0.2 to 8000 Hz

Resonant Frequency

1200 kcpm

20 kHz

[3]

Broadband Resolution(1 to 10,000
Hz)

150 µg

1472
µm/sec²

[3]

Non-Linearity

± 1 %

[7]

Transverse Sensitivity

≤ 5 %

ENVIRONMENTAL

Overload Limit(Shock)

5000 g pk

49,050 m/s² pk

Temperature Range

-65 to +325 °F

-54 to +163 °C

Temperature Response

See Graph

[3]

ELECTRICAL

Settling Time(within 1% of
bias)

≤ 5 sec

Discharge Time Constant

≥ 0.8 sec

Excitation Voltage

18 to 28 VDC

Constant Current
Excitation

2 to 10 mA

[1]

Output Impedance

<700 ohm

Output Bias Voltage(at 4
mA)

8 to 15 VDC

[2]

Spectral Noise(10 Hz)

12 µg/√Hz

118
(µm/sec²)/√Hz

[3]

Spectral Noise(100 Hz)

3.2 µg/√Hz

31.4
(µm/sec²)/√Hz

[3]

Spectral Noise(1 kHz)

1.2 µg/√Hz

11.8
(µm/sec²)/√Hz

[3]

Electrical Protection

RFI/ESD

Electrical Isolation

>10⁸ ohm

>10⁸
ohm

PHYSICAL

Size (Hex x Height)

7/8 in x 2.0 in

22.2 mm x 50.8
mm

Weight

3.3 oz

93 gm

Mounting Thread

1/4-28 UNF

No Metric
Equivalent

[8]

Mounting Torque

2 to 5 ft-lb

2.7 to 6.8 N-m

Sensing Element

Ceramic

Sensing Geometry

Shear

Housing Material

Stainless Steel

Stainless
Steel

Sealing

Welded Hermetic

Welded
Hermetic

Electrical Connector

MIL-C-5015

Electrical Connection
Position

Top

SUPPLIED ACCESSORIES:

Model 081A40 Mounting Stud
(1)

Model ICS-1 NIST-traceable
single-axis amplitude response calibration from 600 cpm (10
Hz) to upper 5% frequency (1)

OPTIONAL
VERSIONS

M– Metric
Mount

Supplied
Accessory : Model M081A61 Mounting Stud 1/4-28 to M6 X 1 (1)
replaces Model 081A40

TO–
Temperature Output

Temperature Output
Range

+36 to +302
°F

+2 to +150
°C

Temperature Scale
Factor

5.56 mV/°F +
32

+10
mV/°C

Electrical
Connector

3-Pin

Electrical
Connections(Pin A)

Acceleration
Output

Electrical
Connections(Pin B)

Ground

Electrical
Connections(Pin C)

Temperature
Output

All specifications are at room temperature unless otherwise specified.

NOTES:
[1]	Maximum of 4 mA is recommended at temperatures above 250 °F (121 °C).
[2]	Bias voltage increases with higher constant current.
[3]	Typical.
[4]	Conversion Factor 1g = 9.81 m/s².
[5]	1Hz = 60 cpm (cycles per minute).
[6]	The high frequency tolerance is accurate within ±10% of the specified frequency.
[7]	Zero-based, least-squares, straight line method.
[8]	1/4-28 has no equivalent in S.I. units.
[9]	See PCB Declaration of Conformance PS023 for details. [9]

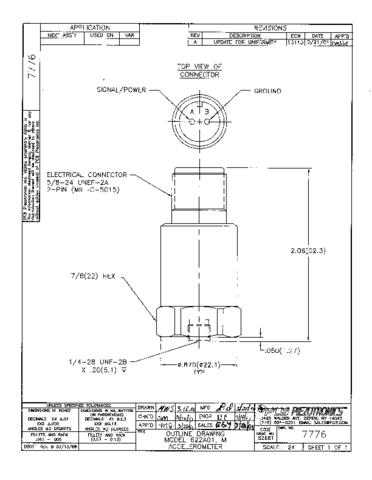

Download Drawing 7776-A.pdf
