Name: Accelerometer (SQI623C00)
SKU: 273
Availability: InStock

Description

High-freq., industrial, ceramic shear ICP® accel, 10 mV/g, 0.8 to 15kHz, top exit, 2-pin conn.
Sensitivity: (±5%) 10 mV/g (1.0 mV/(m/s²))
Frequency Range: (±5%) 144 to 480000 cpm (2.4 to 8000 Hz)
Measurement Range: ±500 g (±4905 m/s²)
Electrical Connector: 2-Pin MIL-C-5015
Electrical Connection Pos: Top

Specifications

Model 623C00

Product Type: Accelerometer, Vibration Sensor

High-freq., industrial, ceramic shear ICP® accel, 10 mV/g, 0.8 to 15k Hz, top exit, 2-pin conn.

View Spec Sheet (PDF)

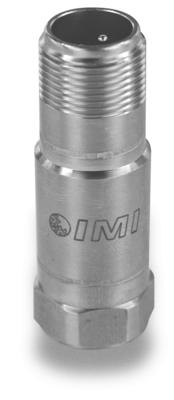

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 5 %)

10 mV/g

1.0 mV/(m/s²)

[2]

Measurement Range

± 500 g

± 4905 m/s²

Frequency Range(± 5 %)

144 to 480,000 cpm

2.4 to 8000 Hz

[3]

Frequency Range(± 10 %)

102 to 600,000 cpm

1.7 to 10,000
Hz

Frequency Range(± 3 dB)

48 to 900,000 cpm

0.8 to 15,000
Hz

Resonant Frequency

2400 kcpm

40 kHz

[1]

Broadband Resolution(1 to 10,000
Hz)

300 µg

2943
µm/sec²

[1]

Non-Linearity

± 1 %

[4]

Transverse Sensitivity

≤ 5 %

ENVIRONMENTAL

Overload Limit(Shock)

5000 g pk

49,050 m/s² pk

Temperature Range

-65 to +250 °F

-54 to +121 °C

Temperature Response

See Graph

[1]

Enclosure Rating

IP68

ELECTRICAL

Settling Time(within 1% of
bias)

≤ 3.0 sec

Discharge Time Constant

≥ 0.2 sec

Excitation Voltage

18 to 28 VDC

Constant Current
Excitation

2 to 20 mA

Output Impedance

<100 ohm

Output Bias Voltage

8 to 12 VDC

Spectral Noise(10 Hz)

12 µg/√Hz

117
(µm/sec²)/√Hz

[1]

Spectral Noise(100 Hz)

4.5 µg/√Hz

44
(µm/sec²)/√Hz

[1]

Spectral Noise(1 kHz)

2.7 µg/√Hz

26.5
(µm/sec²)/√Hz

[1]

Electrical Protection

RFI/ESD

Electrical
Isolation(Case)

>10⁸ ohm

>10⁸
ohm

PHYSICAL

Size (Hex x Height)

11/16 in x 1.97 in

17.5 mm x 50
mm

Weight

1.80 oz

51 gm

Mounting Thread

1/4-28 Female

Not Applicable

[5]

Mounting Torque

2 to 5 ft-lb

2.7 to 6.8 N-m

Sensing Element

Ceramic

Sensing Geometry

Shear

Housing Material

Stainless Steel

Stainless
Steel

Sealing

Welded Hermetic

Welded
Hermetic

Electrical Connector

2-Pin MIL-C-5015

2-Pin
MIL-C-5015

Electrical Connection
Position

Top

SUPPLIED ACCESSORIES:

Model 081A40 Mounting Stud
(1)

Model ICS-1 NIST-traceable
single-axis amplitude response calibration from 600 cpm (10
Hz) to upper 5% frequency

OPTIONAL
VERSIONS

CS– Canadian
Standards Association Approved Intrinsically
Safe

Hazardous Area
Approval

Cl I, Div I, Groups
A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I

Hazardous Area
Approval

Exia IIC T4, AExia
IIC, T4

Hazardous Area
Approval

Cl I, Div 2, Groups
A, B, C, D; ExnL IIC T4, AExnA IIC T4

EX– Hazardous
Area Approval- contact factory for specific
approvals

Hazardous Area
Approval

EEx ia IIC T4,
-54°C≤Ta≤121°C, II 1 G

LB– Low Bias
Voltage

Output Bias
Voltage

6 to 8 VDC

Excitation
Voltage

12 to 28 VDC

Measurement
Range

± 350 g

± 3434
m/s²

M– Metric
Mount

Supplied
Accessory : Model M081A61 Mounting Stud 1/4-28 to M6 X 1 (1)
replaces Model 081A40

All specifications are at room temperature unless otherwise specified.

NOTES:

[1]

Typical.

[2]

Conversion Factor 1g = 9.81 m/s².

[3]

The high frequency tolerance is accurate within ±10% of the specified frequency.

[4]

Zero-based, least-squares, straight line method.

[5]

1/4-28 has no equivalent in S.I. units.

[6]

See PCB Declaration of Conformance PS023 or PS061 for details.

[6]

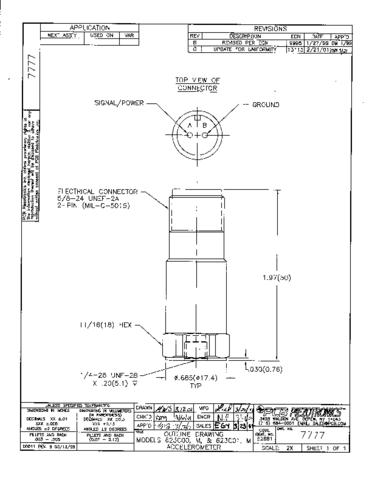

Download Drawing 7777-C.pdf
