Specifications
Model 622B01
|
| Product Type: Accelerometer, Vibration Sensor |
| General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.2 to 15k Hz, top exit, MIL type conn. |
| View Spec Sheet (PDF) |

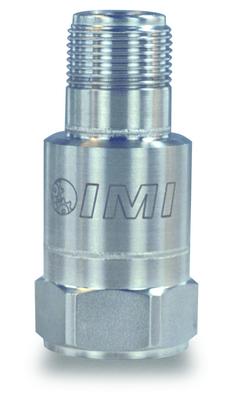

| View photo and drawing. |
| PERFORMANCE |
ENGLISH |
SI |
| Sensitivity(± 5 %) |
100 mV/g |
|
| Measurement Range |
± 50 g |
|
| Frequency Range(± 5 %) |
35 to 360,000 cpm |
|
| Frequency Range(± 10 %) |
25 to 600,000 cpm |
|
| Frequency Range(± 3 dB) |
12 to 900,000 cpm |
|
| Resonant Frequency |
1800 kcpm |
|
Broadband Resolution(1 to 10,000
Hz) |
50 µg |
|
| Non-Linearity |
± 1 % |
|
| Transverse Sensitivity |
≤ 5 % |
|
| ENVIRONMENTAL |
|
|
| Overload Limit(Shock) |
5000 g pk |
|
| Temperature Range |
-65 to +250 °F |
|
| Temperature Response |
See Graph |
|
| Enclosure Rating |
IP68 |
|
| ELECTRICAL |
|
|
Settling Time(within 1% of
bias) |
≤ 5.0 sec |
|
| Discharge Time Constant |
≥ 0.8 sec |
|
| Excitation Voltage |
18 to 28 VDC |
|
Constant Current
Excitation |
2 to 20 mA |
|
| Output Impedance |
<100 ohm |
|
| Output Bias Voltage |
8 to 12 VDC |
|
| Spectral Noise(10 Hz) |
4.0 µg/√Hz |
|
| Spectral Noise(100 Hz) |
0.8 µg/√Hz |
|
| Spectral Noise(1 kHz) |
0.4 µg/√Hz |
|
| Electrical Protection |
RFI/ESD |
|
| Electrical Isolation |
>108 ohm |
|
| PHYSICAL |
|
|
| Size (Hex x Height) |
7/8 in x 2.06 in |
|
| Weight |
3.3 oz |
|
| Mounting Thread |
1/4-28 Female |
|
| Mounting Torque |
2 to 5 ft-lb |
|
| Sensing Element |
Ceramic |
|
| Sensing Geometry |
Shear |
|
| Housing Material |
Stainless Steel |
|
| Sealing |
Welded Hermetic |
|
| Electrical Connector |
2-Pin MIL-C-5015 |
|
Electrical Connection
Position |
Top |
|
SUPPLIED ACCESSORIES:
|
Model 081A40 Mounting Stud
(1) |
Model ICS-1 NIST-traceable
single-axis amplitude response calibration from 600 cpm (10
Hz) to upper 5% frequency (1) |
OPTIONAL
VERSIONS |
|
|
Supplied
Accessory : Model M081A61 Mounting Stud 1/4-28 to M6 X 1
(1) |
All specifications are at room temperature unless otherwise specified.
NOTES:
[1] Typical.
[2] Conversion Factor 1g = 9.81 m/s².
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Zero-based, least-squares, straight line method.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 for details.

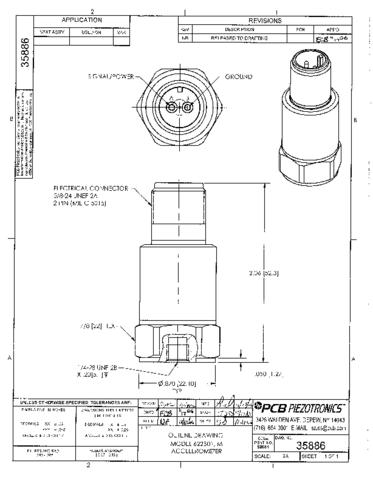

Download Drawing 35886-NR.pdf
