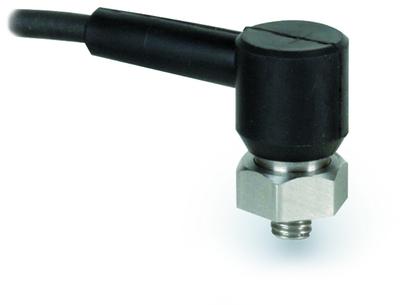

Name: Accelerometer (SQI607A11)
SKU: 1696
Availability: InStock

Description

-Low profile industrial ceramic shear ICP® accel, 100 mV/g, 0.5 to 10kHz, side exit, 9/16 hex lock nut, 10-ft integral cable
-Sensitivity: (±15%) 100 mV/g (10.2 mV/(m/s²))
-Measurement Range: ±50 g (±490 m/s²)
-Mounting: Stud
-Electrical Connector: Molded Integral Cable
-Electrical Connection Pos: Side

Specifications

Model 607A11

Product Type: Accelerometer, Vibration Sensor

Low profile industrial ICP® accel, 100 mV/g, 0.5 to 10k Hz, side exit, 10-ft integral cable & swiveler base

View Spec Sheet (PDF)

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 15 %)

100 mV/g

10.2 mV/(m/s²)

[2]

Measurement Range

± 50 g

± 490 m/s²

Frequency Range(± 3 dB)

30 to 600,000 cpm

0.5 to 10,000 Hz

Resonant Frequency

1500 kcpm

25 kHz

[1]

Broadband Resolution(1 to 10,000 Hz)

350 µg

3434 µm/sec²

[1]

Non-Linearity

± 1 %

[3]

Transverse Sensitivity

≤ 7 %

ENVIRONMENTAL

Overload Limit(Shock)

5000 g pk

49,050 m/s² pk

Temperature Range

-65 to +250 °F

-54 to +121 °C

Temperature Response

See Graph

[1]

Enclosure Rating

IP68

ELECTRICAL

Settling Time(within 1% of bias)

≤ 2 sec

Discharge Time Constant

≥ 0.3 sec

Excitation Voltage

18 to 28 VDC

Constant Current Excitation

2 to 20 mA

Output Impedance

<150 ohm

Output Bias Voltage

8 to 12 VDC

Spectral Noise(10 Hz)

8 µg/√Hz

78.5 (µm/sec²)/√Hz

[1]

Spectral Noise(100 Hz)

5 µg/√Hz

49.1 (µm/sec²)/√Hz

[1]

Spectral Noise(1 kHz)

4 µg/√Hz

39.2 (µm/sec²)/√Hz

[1]

Electrical Isolation(Case)

>10⁸ ohm

PHYSICAL

Size (Hex x Height)

9/16 in x 0.97 in

14 mm x 24.6 mm

Weight(without cable)

1.1 oz

31 gm

[4]

Mounting

Stud

Mounting Thread

1/4-28 Male

Not Applicable

[5]

Mounting Torque(stud)

7 to 8 ft-lb

9.5 to 10.8 N-m

[6][7]

Mounting Torque(hex nut)

2 to 5 ft-lb

2.7 to 6.8 N-m

Sensing Element

Ceramic

Sensing Geometry

Shear

Housing Material

Stainless Steel

Sealing

Welded Hermetic

Electrical Connector

Molded Integral Cable

Electrical Connection Position

Side

Cable Length

10 ft

3.0 m

Cable Type

Polyurethane

[8]

SUPPLIED ACCESSORIES:

Model 080A156 Mounting Base (1)

Model ICS-2 NIST-traceable single-axis single-point amplitude response calibration at 6000 cpm (100 Hz) (1)

OPTIONAL VERSIONS

EX– Hazardous Area Approval- contact factory for specific approvals

Hazardous Area Approval

EEx nL IIC T4, -40°C≤Ta≤121°C, II 1 G

Hazardous Area Approval

Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I

Hazardous Area Approval

Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4

Hazardous Area Approval

Exia IIC T4, AExia IIC, T4

Hazardous Area Approval

EEx nL IIC T4, -40°C≤Ta≤121°C, II 3 G

M– Metric Mount

Supplied Accessory : Model M080A159 Mounting stud, 1/2-20 to M6 x 1 (1) replaces Model 080A156

TO– Temperature Output

Temperature Output Range

+36 to +250 °F

+2 to +121 °C

Temperature Scale Factor

5.56 mV/°F + 32

+10 mV/°C

Electrical Connector

Molded Integral Cable

Electrical Connections(Red)

Acceleration Output

Electrical Connections(Black)

Ground

Electrical Connections(White)

Temperature Output

All specifications are at room temperature unless otherwise specified.

NOTES:
[1]	Typical.
[2]	Conversion Factor 1g = 9.81 m/s².
[3]	Zero-based, least-squares, straight line method.
[4]	Measured with mounting stud.
[5]	1/4-28 has no equivalent in S.I. units.
[6]	1/8″ hex Allen key required for English version, 4 mm hex Allen key required for Metric version.
[7]	Stud torque must exceed sensor hex nut torque to ensure proper dismantling.
[8]	Twisted shielded pair.
[9]	See PCB Declaration of Conformance PS023 or PS060 for details.
