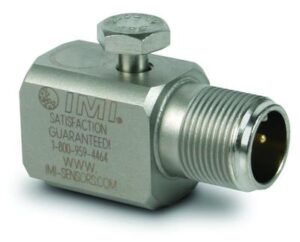

Name: Accelerometer (SQI602D01)
SKU: 219
Availability: InStock

Description

Low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.4 to 8000 Hz, side exit, 2-pin connector
Sensitivity: (±10%) 100 mV/g (10.2 mV/(m/s²))
Frequency Range: (±3dB) 30 to 480000 cpm (0.5 to 8000 Hz)
Measurement Range: ±50 g (±490 m/s²)
Electrical Connector: 2-Pin MIL-C-5015

Specifications

Model 602D01

Product Type: Accelerometer, Vibration Sensor

Low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.4 to 8000 Hz, side exit, 2-pin connector

View Spec Sheet (PDF)

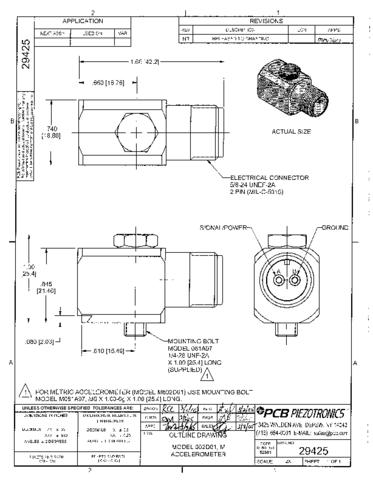

View photo and drawing .

PERFORMANCE

ENGLISH

SI

Sensitivity(± 10 %)

100 mV/g

10.2 mV/(m/s²)

[2]

Measurement Range

± 50 g

± 490 m/s²

Frequency Range(± 3 dB)

30 to 480,000 cpm

0.5 to 8000 Hz

[3]

Resonant Frequency

1500 kcpm

25 kHz

[1]

Broadband Resolution(1 to 10,000
Hz)

350 µg

3434
µm/sec²

[1]

Non-Linearity

± 1 %

[4]

Transverse Sensitivity

≤ 7 %

ENVIRONMENTAL

Overload Limit(Shock)

5000 g pk

49,050 m/s² pk

Temperature Range

-65 to +250 °F

-54 to +121 °C

Temperature Response

See Graph

[1]

Enclosure Rating

IP68

ELECTRICAL

Settling Time(within 1% of
bias)

≤ 2.0 sec

Discharge Time Constant

≥ 0.3 sec

Excitation Voltage

18 to 28 VDC

Constant Current
Excitation

2 to 20 mA

Output Impedance

<150 ohm

Output Bias Voltage

8 to 12 VDC

Spectral Noise(10 Hz)

8.0 µg/√Hz

78.5
(µm/sec²)/√Hz

[1]

Spectral Noise(100 Hz)

5 µg/√Hz

49.1
(µm/sec²)/√Hz

[1]

Spectral Noise(1 kHz)

4 µg/√Hz

39.2
(µm/sec²)/√Hz

[1]

Electrical
Isolation(Case)

>10⁸ ohm

>10⁸
ohm

PHYSICAL

Size (Length x Width x
Height)

1.65 in x 0.74 in x 0.845
in

41.9 mm x 18.8 mm x 21.5
mm

Weight

2.61 oz

74.0 gm

Mounting Thread

1/4-28 Male

No Metric
Equivalent

[5]

Mounting Torque

2 to 5 ft-lb

2.7 to 6.8 N-m

Sensing Element

Ceramic

Sensing Geometry

Shear

Housing Material

Stainless Steel

Stainless
Steel

Sealing

Welded Hermetic

Welded
Hermetic

Electrical Connector

2-Pin MIL-C-5015

2-Pin
MIL-C-5015

Electrical Connection
Position

Side

SUPPLIED ACCESSORIES:

Model 081A97 Thru bolt 1/4-28
(1)

OPTIONAL
VERSIONS

EX– Hazardous
Area Approval- contact factory for specific
approvals

Hazardous Area
Approval

EEx nL IIC T4,
-40°C≤Ta≤121°C, II 3 G

Hazardous Area
Approval

EEx nL IIC T4,
-40°C≤Ta≤121°C, II 1 G

Hazardous Area
Approval

Cl I, Div I, Groups
A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I

Hazardous Area
Approval

Exia IIC T4, AExia
IIC, T4

Hazardous Area
Approval

Cl I, Div 2, Groups
A, B, C, D; ExnL IIC T4, AExnA IIC T4

M– Metric
Mount

Supplied
Accessory : Model M081A97 Captive mounting bolt, M6 x 1 x 25.4
mm long, hex head (1)

TO–
Temperature Output

Temperature Output
Range

+36 to +250
°F

+2 to +121
°C

Temperature Scale
Factor

5.56 mV/°F +
32

+10
mV/°C

Electrical
Connector

3-Pin

Electrical
Connections(Pin A)

Acceleration
Output

Electrical
Connections(Pin B)

Ground

Electrical
Connections(Pin C)

Temperature
Output

All specifications are at room temperature unless otherwise specified.
NOTES: [1] Typical. [2] Conversion Factor 1g = 9.81 m/s². [3] The high frequency tolerance is accurate within ±10% of the specified frequency. [4] Zero-based, least-squares, straight line method. [5] 1/4-28 has no equivalent in S.I. units. [6] See PCB Declaration of Conformance PS023 or PS060 for details.
