4-20 mA Transmitter (SQI640B02)

4-20 mA Transmitter (SQI640B02)

Category:

Description

-0 to 2.0 in/sec pk input velocity range
-4 to 20 mA current output
-0.01 in/sec pk resolution
-180 to 60k cpm (3 to 1000 Hz) frequency range [±10%]
-2-pin connector and two integral cable styles

Specifications

640B02 alternate_photo Industrial monitoring Instrumentation

Model 640B02
Product Type: Accelerometer, Vibration Sensor, Vibration Transmitter
Industrial vibration sensor, 4 to 20 mA output, 0 to 2 in/sec pk, 3 to 1k Hz, top exit, 2-pin conn.
View Spec Sheet (PDF)
View photo and drawing .
PERFORMANCE ENGLISH SI
Measurement Range 0.0 to 2 in/sec pk
0.0 to 50.8 mm/s pk [1]
Output 4-20 mA
4-20 mA
Frequency Range(± 10 %) 180 to 60,000 cpm
3 to 1000 Hz [2][3]
Broadband Resolution 0.01 in/sec pk
0.26 mm/s pk [4]
Non-Linearity ± 1 %
± 1 %
ENVIRONMENTAL
Temperature Range -40 to 185 °F
-40 to 85 °C
ELECTRICAL
Excitation Voltage 12 to 30 VDC
12 to 30 VDC
Settling Time(within 2% of value) <15 sec
<15 sec
Electrical Isolation(Case) >108 ohm
>108 ohm
PHYSICAL
Size (Hex x Height) 1.0 in x 2.6 in
25.4 mm x 66 mm
Weight 4.7 oz
131 gm
Mounting Thread 1/4-28 UNF
Not Applicable
Mounting Torque 3 to 5 ft-lb
4 to 7 N-m
Sensing Element Ceramic
Ceramic
Sensing Geometry Shear
Shear
Housing Material Stainless Steel
Stainless Steel
Sealing Welded Hermetic
Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015
2-Pin MIL-C-5015
Electrical Connection Position Top
Top
Electrical Connections(Pin A) 4-20 mA Pos (+)
4-20 mA Pos (+)
Electrical Connections(Pin B) 4-20 mA Neg (-)
4-20 mA Neg (-)
SUPPLIED ACCESSORIES:
Model 081A40 Mounting Stud (1)
Model ICS-4 NIST-traceable single-axis amplitude response calibration from 0 cpm (0 Hz) to upper 10% frequency for 4 – 20 mA output vibration sensor (1)
OPTIONAL VERSIONS
EX– Hazardous Area Approval- contact factory for specific approvals
Hazardous Area Approval DIV II, CL I, GRPS A-D, ExnL, AExnA, IIC T4
Hazardous Area Approval EEx ia IIC T4, -40°C≤Ta≤80°C, II 1 G
Hazardous Area Approval EEx nL IIC T4, -40°C≤Ta≤80°C, II 3 G
Hazardous Area Approval DIV I, CL I, II, III, GRPS A-G, Exia, AExia, IIC T4
M– Metric Mount
Supplied Accessory : Model M081A61 Mounting Stud 1/4-28 to M6 X 1 (1) replaces Model 081A40
RV– Buffered Analog Signal Output – 100 mV/g (±20%)
Electrical Connector 3-Pin MIL-C-5015
Electrical Connections(Pin A) 4-20 mA Pos (+)
Electrical Connections(Pin B) 4-20 mA Neg/Signal Output Neg
Electrical Connections(Pin C) Signal Output Pos


All specifications are at room temperature unless otherwise specified.

NOTES:
[1] Conversion Factor 1 in/sec = 0.0254 m/sec.
[2] Current will fluctuate at frequencies below 5 Hz.
[3] 1Hz = 60 cpm (cycles per minute).
[4] Typical.
[5] See PCB Declaration of Conformance PS039 or PS053 for details.



[5]

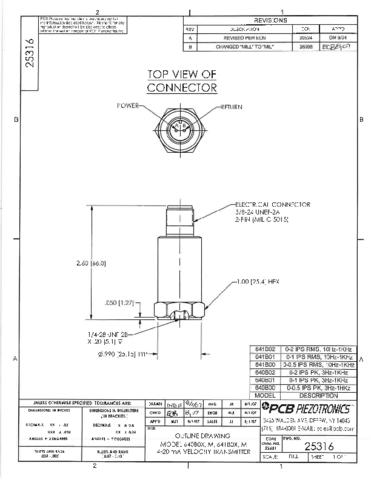

Download Drawing 25316-B.pdf
